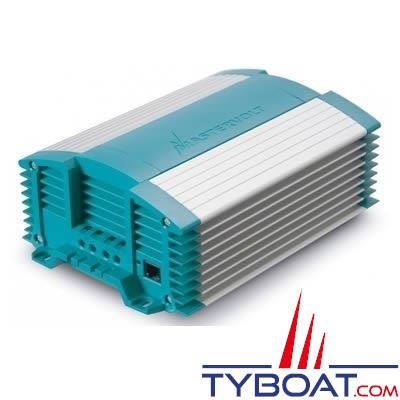

Mastervolt - Convertisseur Magic 24V/12-20 - 20A - IP22
)
)
Prix conseillé :
-10%
388.00
388€00
323€33 (HT)
En Stock sous 6 à 15 Jours ouvré(s)*
Référence
81300100
Garantie fabricant 5 ans
Convertisseur Magic 24V/12-20 - 20A - IP22
| INPUT SPECIFICATIONS | |
| Nominal input voltage | 24V |
| Input range (full output specs) | 19-32V DC |
| Input range (3-stage charge mode) | 24-32V DC |
| Input range (no defects) | 0-35V DC |
| Lower input (set point) | 20V DC (adjustable with MasterAdjust software) |
| Delay lower input set point | 30 sec. (adjustable with MasterAdjust software) |
| OUTPUT SPECIFICATIONS | |
| Nominal voltage | 13.6V DC (adjustable with MasterAdjust software) |
| Voltage adjustable | 12-15V DC (adjustable with MasterAdjust software) |
| Output voltage dimmer | 4-13V DC (adjustable with MasterAdjust software) |
| Stabilised | 2% at extremes of temperatures, load and input |
| Ripple | max. 1% peak peak |
| Maximum power | 300W |
| Nominal power | 270W |
| Current max. (derating >40°C, 5%/°C) | 20A |
| Charge current - 3-step mode | 16A |
| GENERAL SPECIFICATIONS | |
| Ambient operating temperature | 0°C to 60°C (derating above 40°C, 5% per °C) in practice: 20°C to 60°C |
| Storage temperature | -25°C to 85°C |
| Operating humidity | 95% max. (non condensing) |
| Galvanic isolation | yes |
| Voltage limited | yes |
| 3-step battery charge option | yes (DIP switch setting) |
| Efficiency | 90% (at nom. input voltage, full load) 92% peak |
| No load consumption | <115mA |
| PROTECTIONS | |
| IP-rating | IP21 |
| Over current | yes |
| Over heat | yes |
| OPTIONS | |
| Dimmer function | yes (by external momentary switch via push on connection, to be activated by DIP switch setting) |
| Alarm contact | yes (push on connector) |
| Communication | quasi RS232, modular RJ12 connector to alter setpoints and to change characteristics (optional inter |
| MECHANICAL | |
| Connections input/output | screw terminals (max. wire size 16 mm2/AWG5) |
| Dimensions (H x W x D) | 227 x 154 x 81 mm |
| Weight | 1.8 kg |
| Cabinet | anodised aluminium (Strapton ABS blend) |
